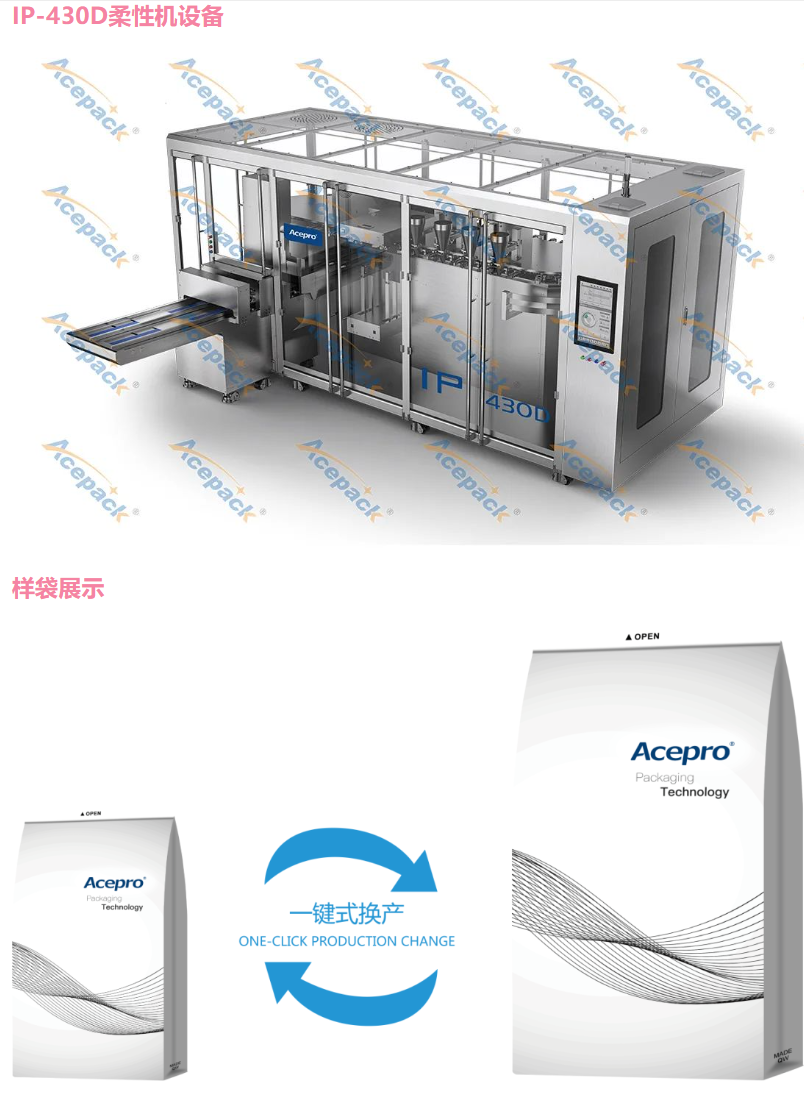

上海歐朔生產的柔性化給袋式包裝機,支持一鍵式換產,跟隨式下料,生命周期管理,OEE效率提升,兼容大范圍尺寸及人機交互界面等功能,為您的包裝提供更加智能的解決方案.
設備特點及參數
EQUIPMENT FEATURE AND PARAMETER:
1.一鍵式換產
One-click change of production
2.跟隨式下料
Follower-type filling
3.生命周期管理
Life cycle management
4.OEE效率提升
Improve OEE of equipment
5.兼容大范圍尺寸
Compatible with a wide range of sizes
6. 4.0人機交互界面
4.0 Human Computer Interaction Interface
| 型號 Model | IP430D | IP430DC | IP430LC |
| 袋形尺寸范圍 Pouch Size |
90*120(50*2)(Min) 215*350(50*2)(Max) |
90*120(Min) 215*350(Max) |
170*200(25*2)(Min) 430*1000(75*2)(Max) |
| 包裝容量范圍 Filling Capacity | 1800ml | 1800ml | 20000ml |
| 包裝速度 Packaging Capacity | 80-120ppm | 100-160ppm | 10-40ppm |
| 能 耗Energy Consumption | 14.8kw/h | 14.8kw/h | 13.6kw/h |
| 耗氣量 Air Consumption | 200NL/min | 200NL/min | 100NL/min |
| 設 備尺寸 Machine Dimensions |
5100*2010*2320(含輸送帶3800(W)) (L*W*H) |
5700*2010*2320(含輸送帶3800(W)) (L*W*H) |
6400*2100*2320(含輸送帶4500(W)) (L*W*H) |
| 重 量 Weight | 12400kg | 12800kg | 13000kg |
